Vistapod Duo 1

Double the Space. Double the Possibilities.

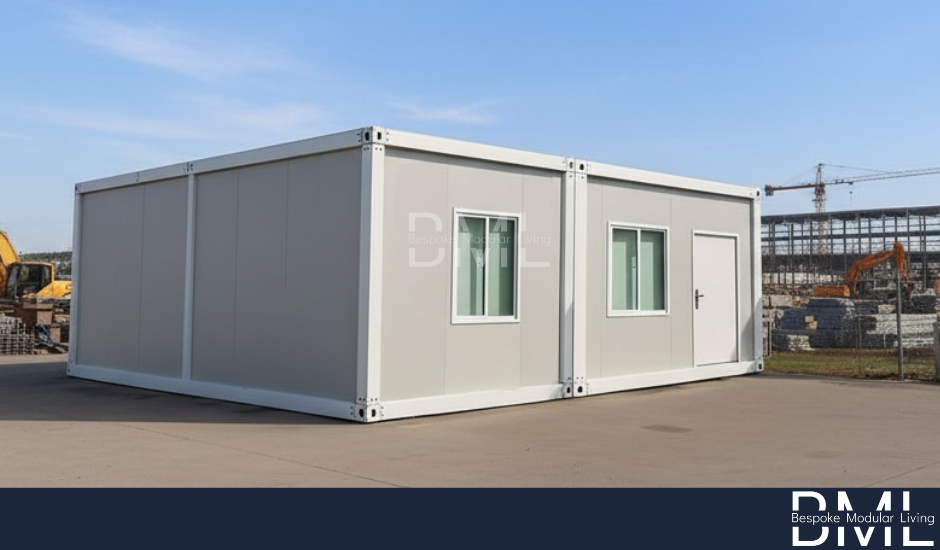

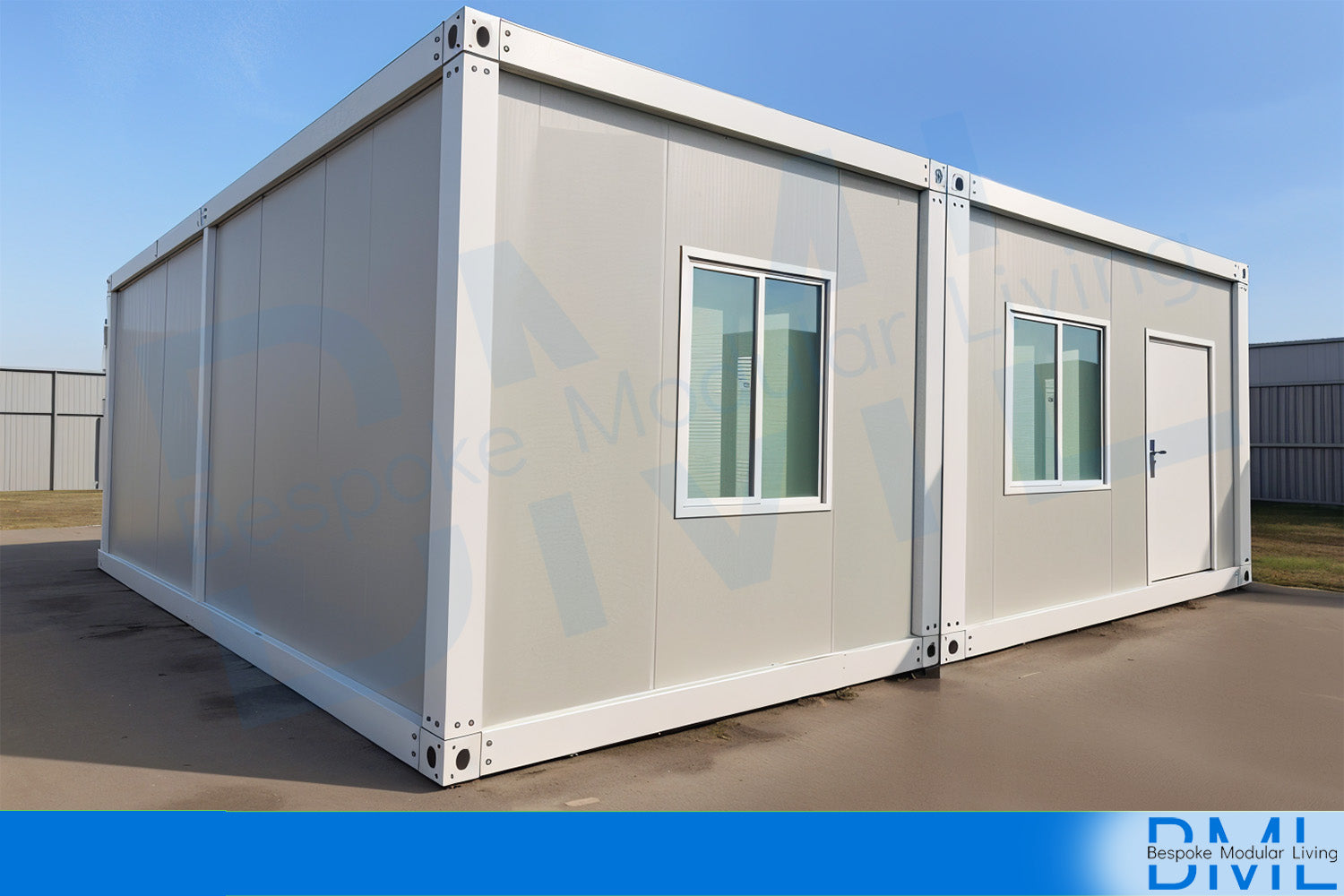

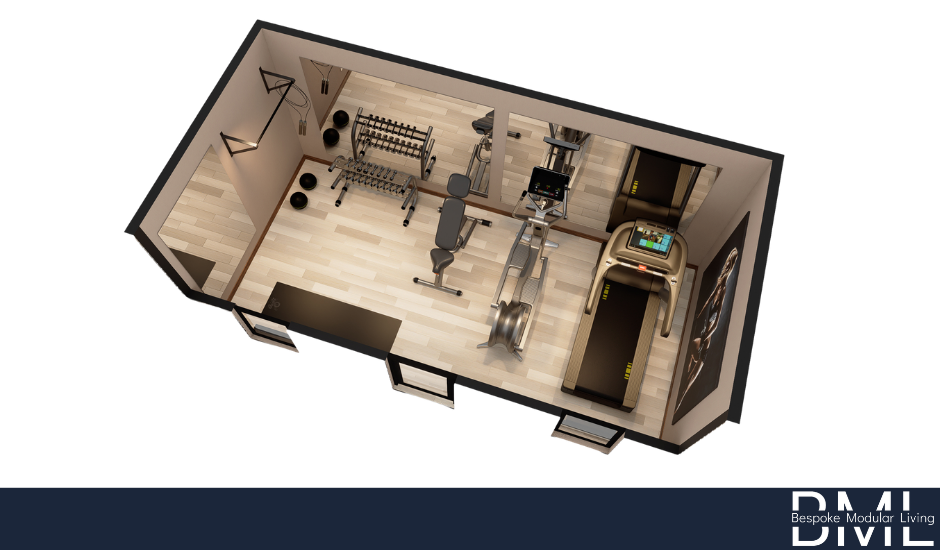

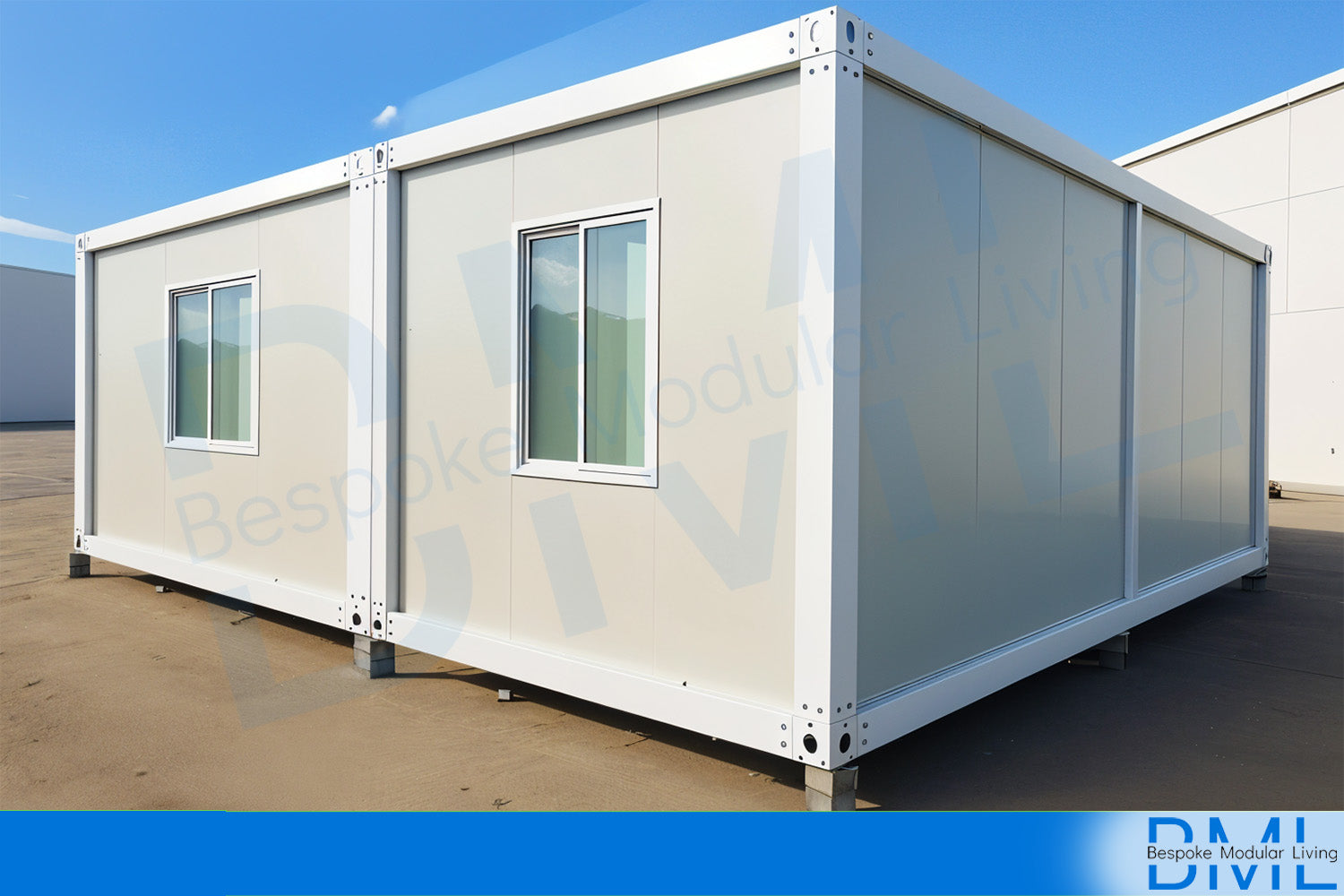

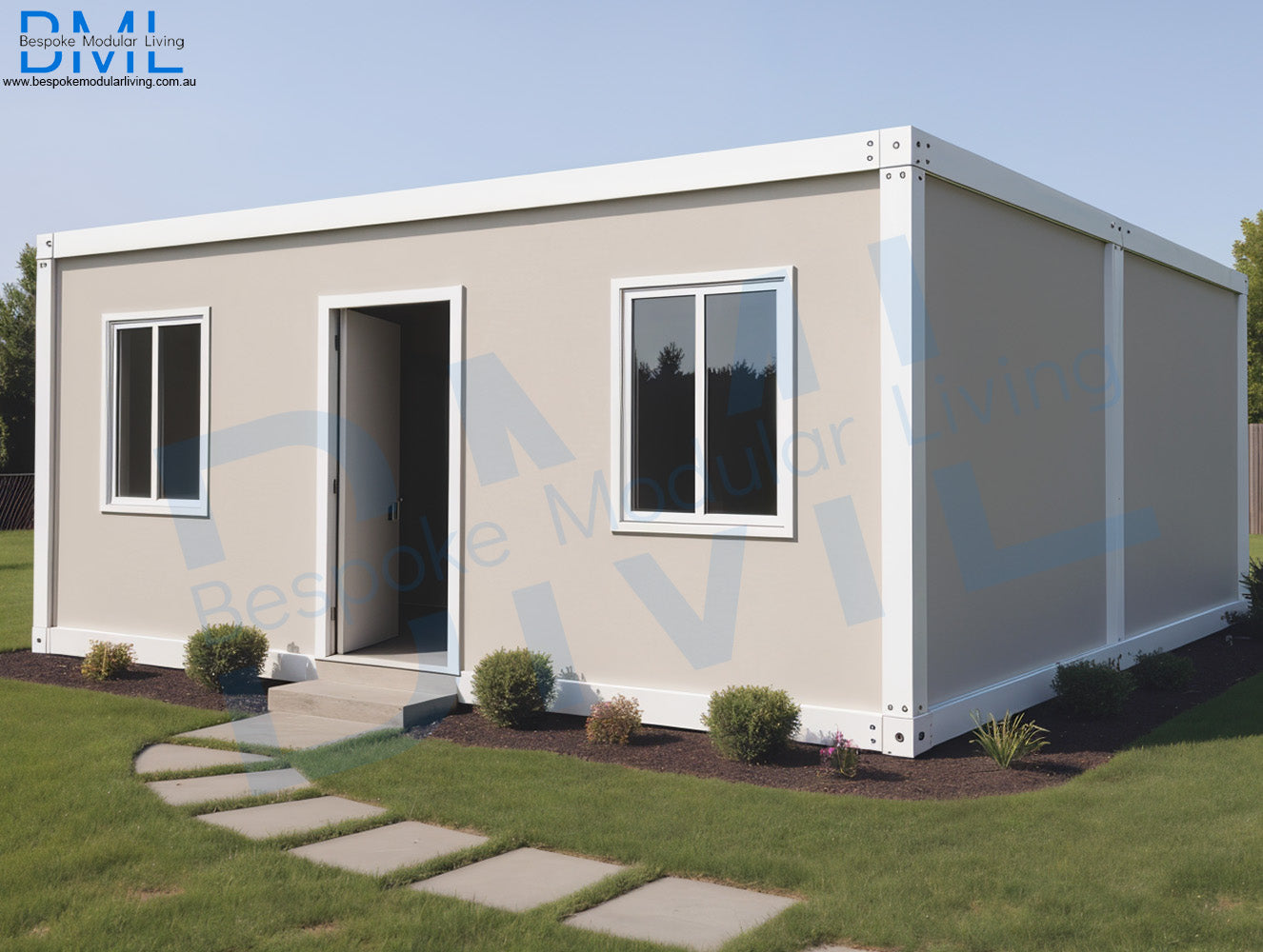

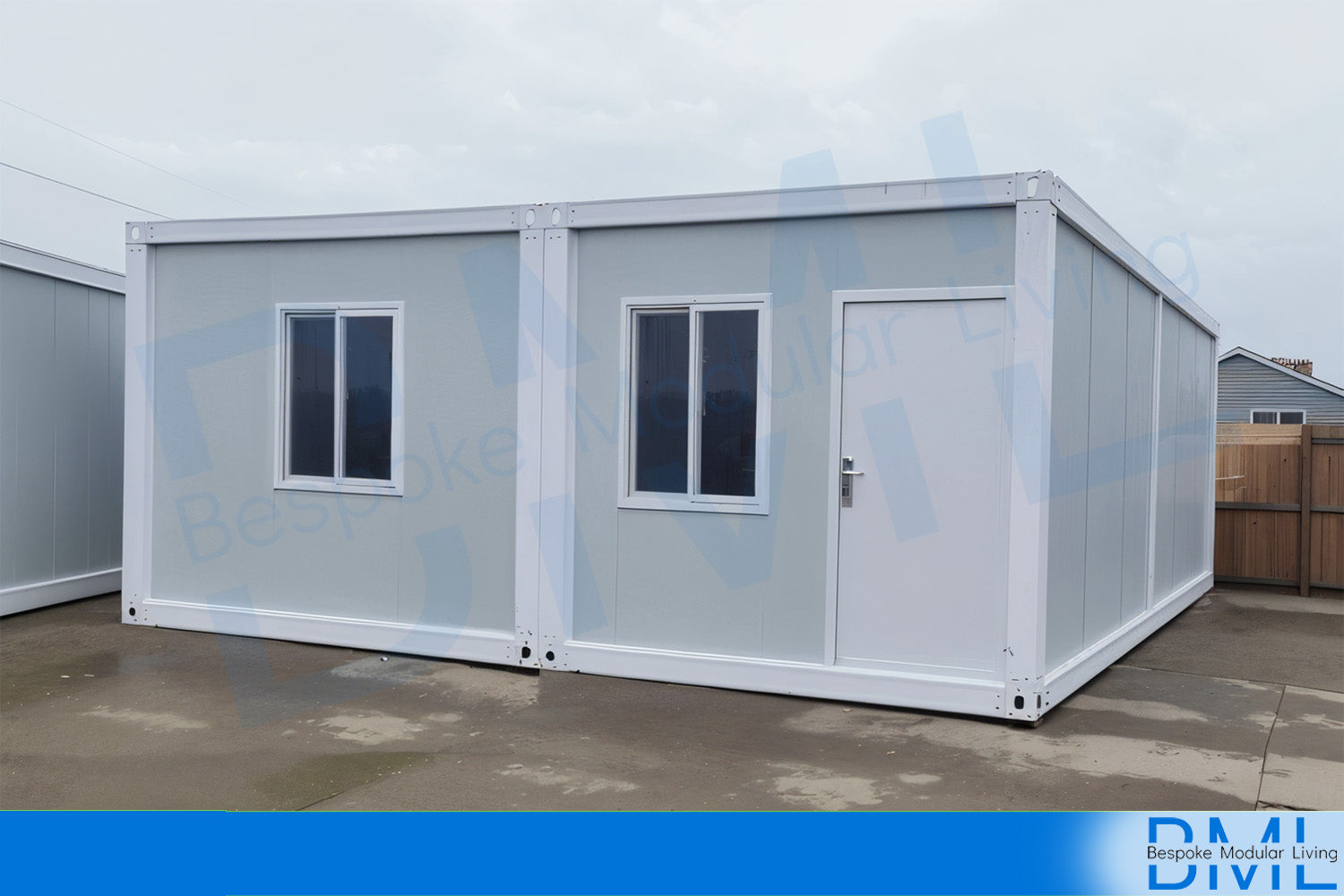

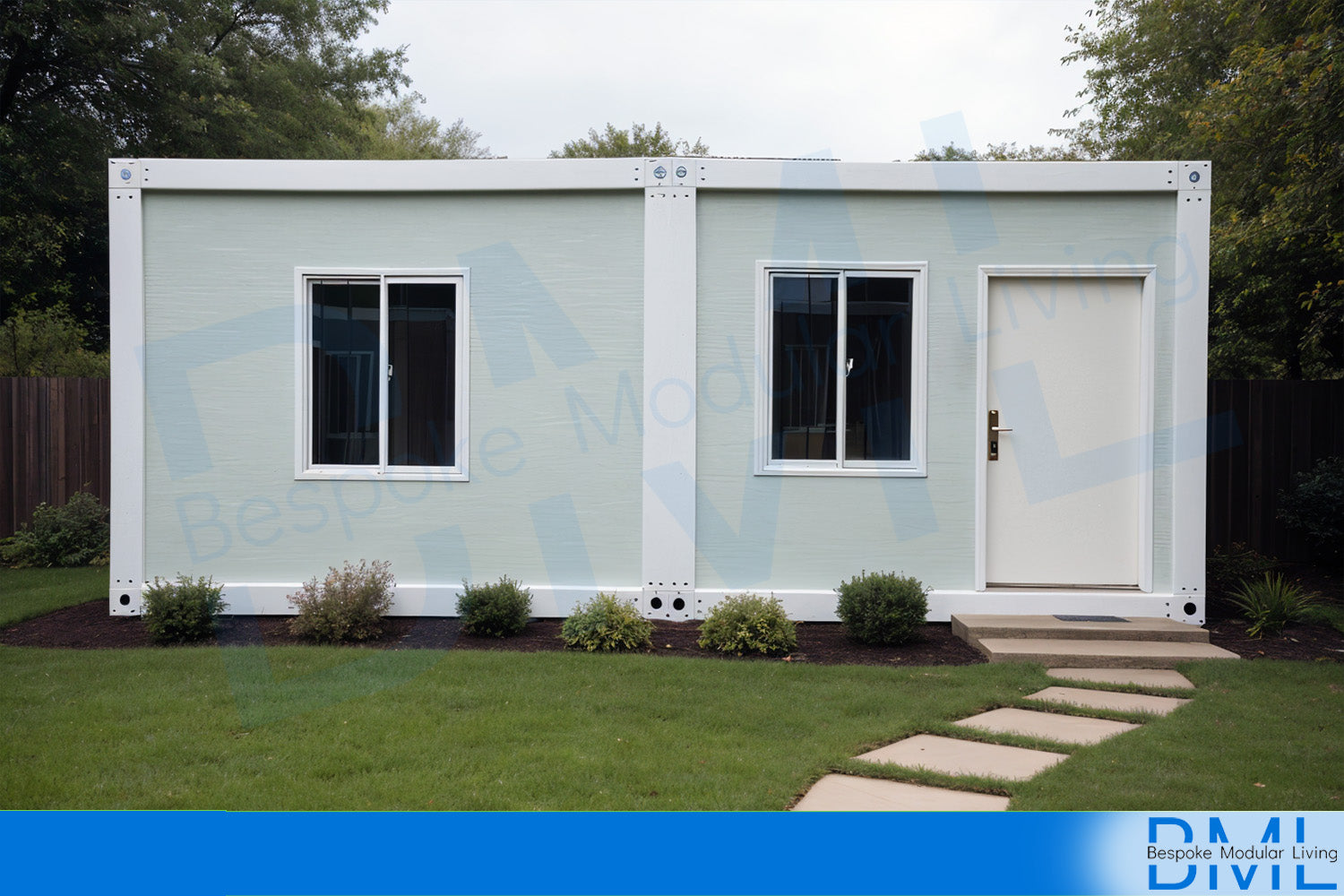

The Vista Pod Duo gives you a spacious 6m x 6m modular unit by combining two Vista Pods into one. It’s perfect for creating a home office with extra room, a studio, dual workstations, staff lunchroom, or whatever space you need.

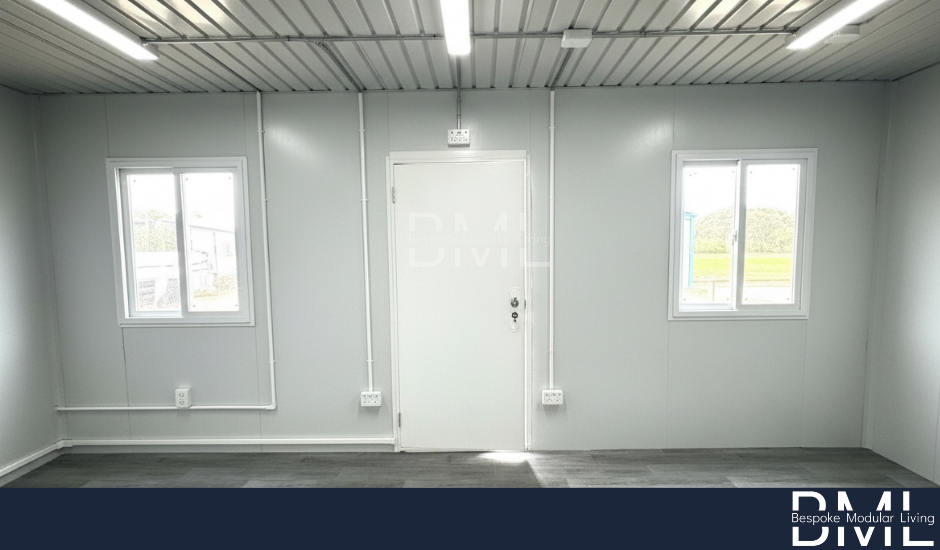

Delivered fully built and ready to place on-site, it includes a steel frame, insulated EPS walls, PVC flooring, roof sheeting, and clip-in ceiling panels. With four double-glazed windows and a PA door, it’s bright, comfortable, and ready for you to use, with optional electrical & split system ad-on.

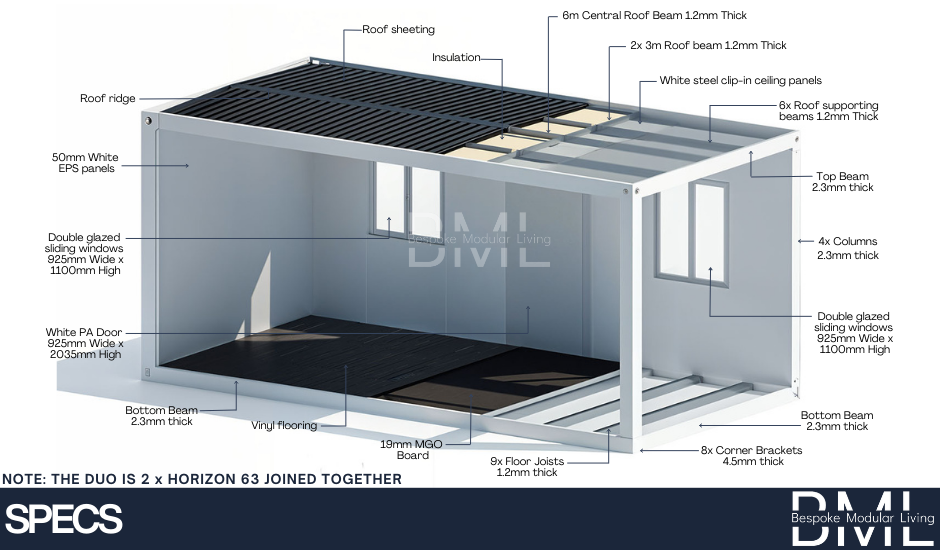

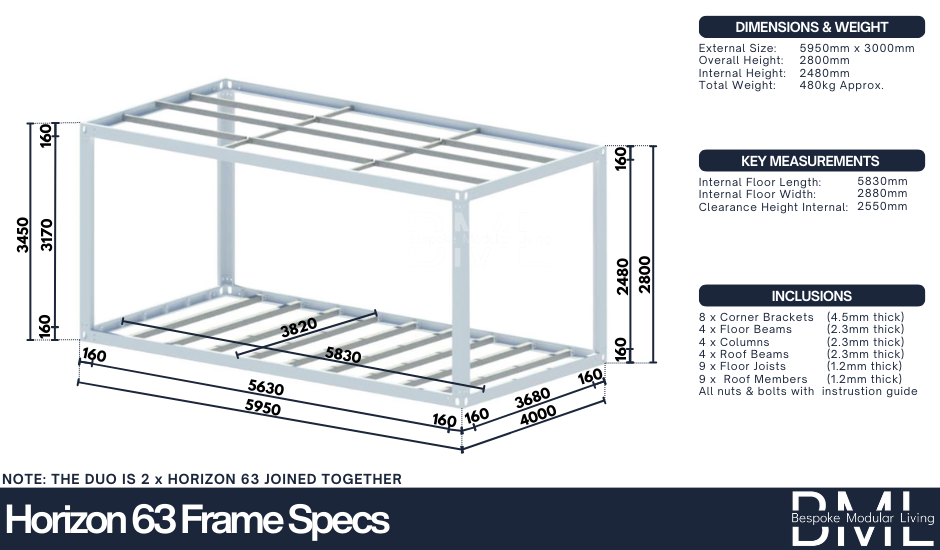

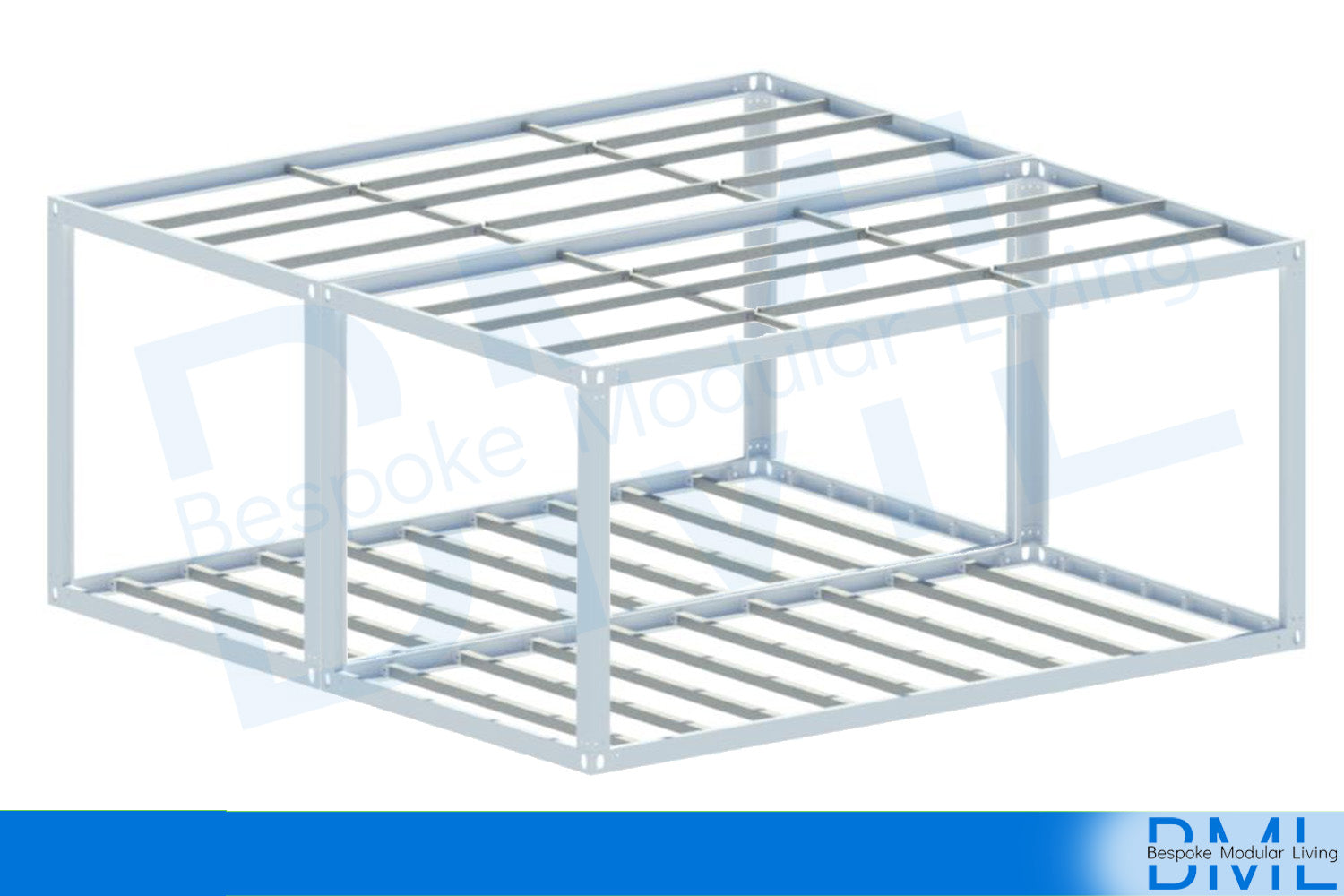

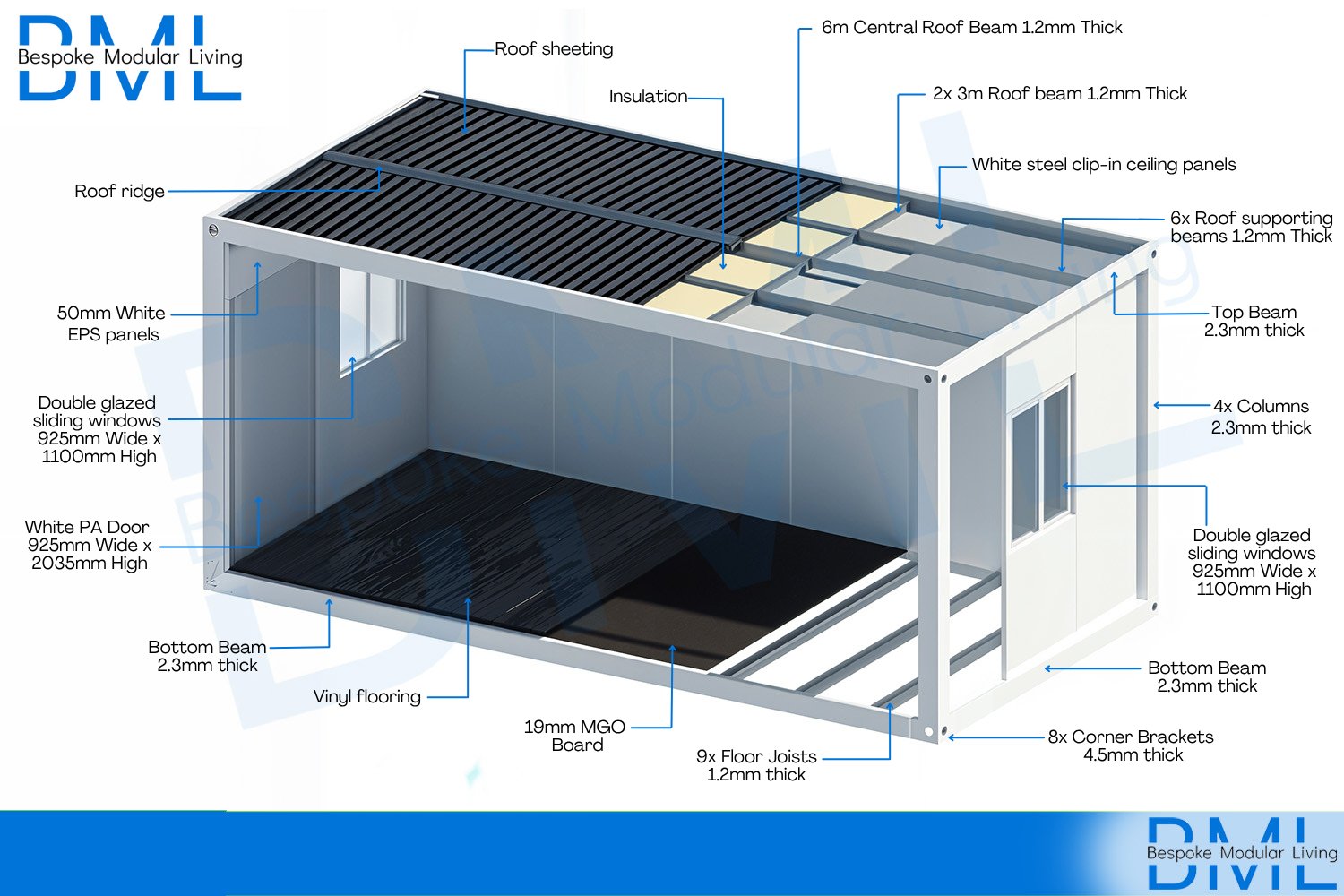

6M X 3M PRE-ENGINEERED FLAT ROOF STEEL FRAME

·        2 - 6m x 3m pre-engineered flat roof steel frame

WALL SYSTEM

·        50mm EPS insulated panel system

FLOORING SYSTEM

·        MGO Board subfloor finished with grey PVC flooring for a clean, modern look

ROOF & CEILING PACKAGE

·        Metal roof sheeting

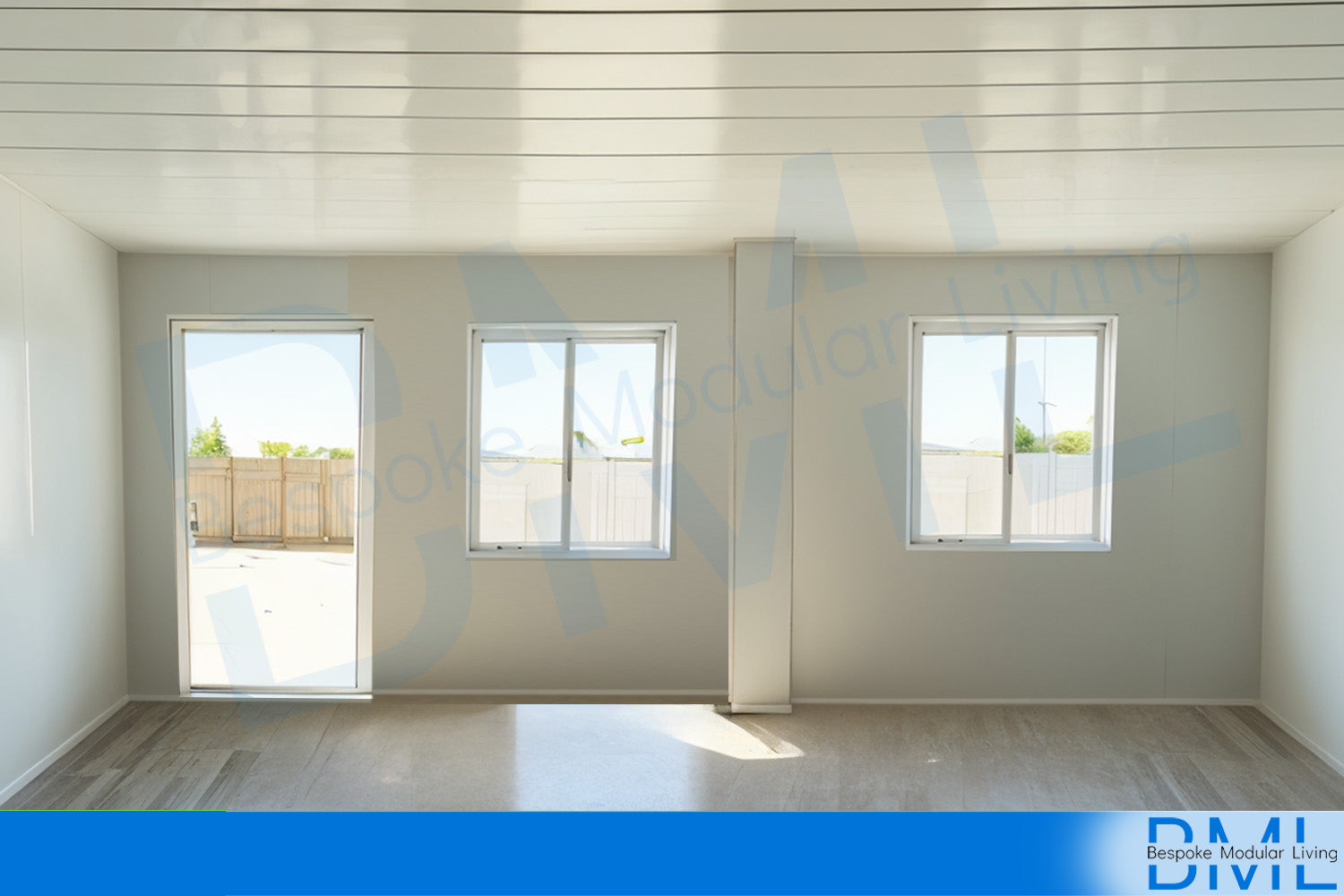

·        Steel clip-in ceiling panels for a sleek interior finish

·        Roof insulation for added energy efficiency

PREMIUM DOUBLE GLAZED OPENINGS

·        1 x white PA door (925mm x 2035mm)

·        4 x white double-glazed windows (925mm x 1100mm)

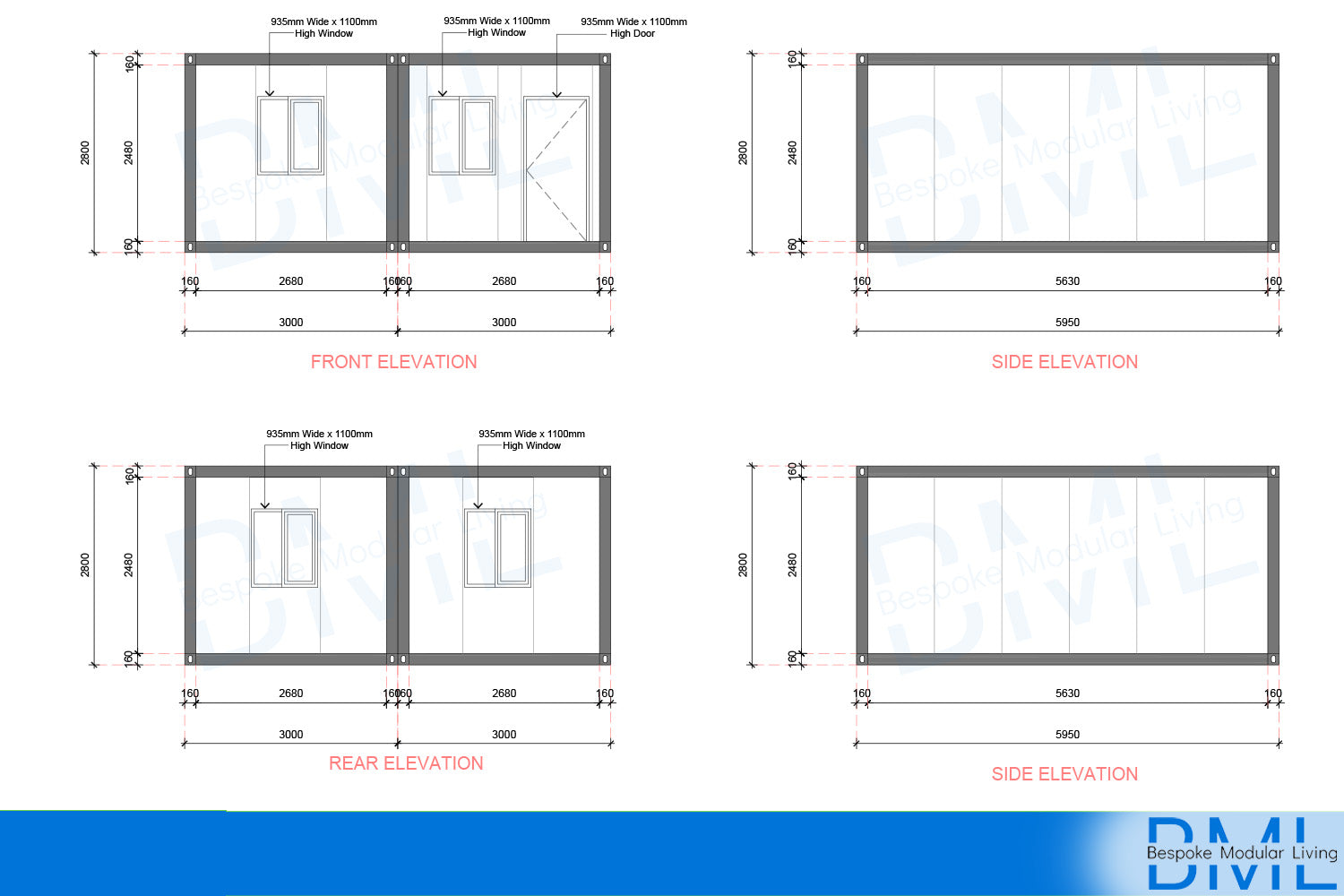

EXTERIOR MEASURMENTS OVERALL
Length:       5950mm
Width:        6000mm
Height:       2800mm

INTERIOR MEASURMENTS AFTER FRAME & MATERIAL INSTALLATION
Length:       5730mm
Width:        5780mm
Height:       2460mm

Wind Rating: N2 wind Rating compliant Australia-wide (Region A)

Note: If your site is not in an N2 wind zone and requires a higher wind rating, no problem, just let us know. Our engineer can perform the necessary calculations and adjust the design with additional steel to ensure compliance.

If your project requires a Building Permit, we can assist in providing the necessary engineering certification and footing plans. This service is available for a fee of $550 and includes site-specific documentation prepared by our certified engineer.

How It Works:

1. Purchase the Vistapod
Secure your Vistapod by completing your purchase.

2. Provide Property Information
Send us your property address and indicate where the kit will be positioned on your site.

3. Soil Report
A soil report is required to develop accurate footing plans.

• If you already have a soil report, please send it through, we’ll pass it on to our engineer.
• If you don’t have one, we can arrange for a geotechnical technician to conduct a site visit (Victoria only). Additional fees apply depending on your location.
• For projects outside Victoria, you’ll need to source a soil report locally.

4. Engineering Calculations
Our engineer will prepare all the necessary calculations and documentation.

5. Processing Time
Please allow 1–2 weeks for completion.

6. Final Documentation Provided
You’ll receive:

• Structural Drawings
• Engineering Computations
• Certification

After receiving your engineering documentation, you’ll need to engage an architect (if required) and a building surveyor to progress your Building Permit application.
