Pinnacle
A modular class 1A Approved, wind-rated steel frame system built for fast installs, flexible layouts, and long-term durability.

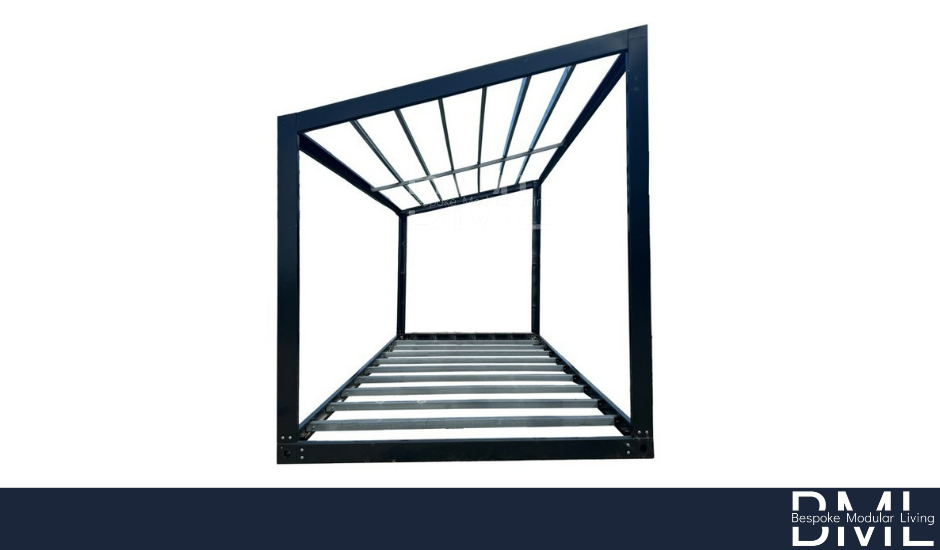

Pinnacle Skillion Roof Frame
The Pinnacle Skillion Roof Frame is a precision-engineered steel system designed for strength, flexibility, and long-term reliability. Featuring a contemporary single-slope roof design, the Pinnacle delivers a clean architectural look while maintaining structural performance.
Available Sizes

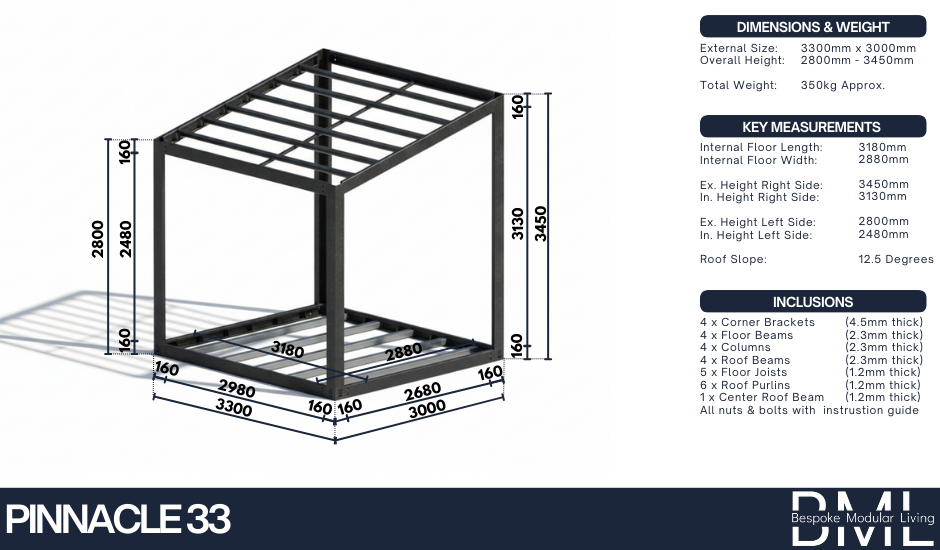

- Pinnacle 33 - 3.3 x 3m
- Pinnacle 44 - 4 x 4m
- Pinnacle 63 - 6 x 3m

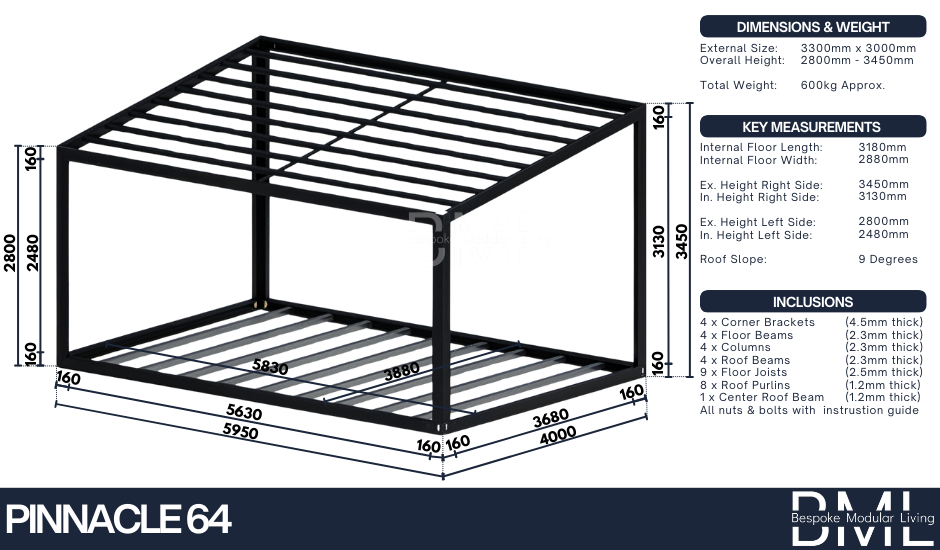

- Pinnacle 64 - 6 x 4m

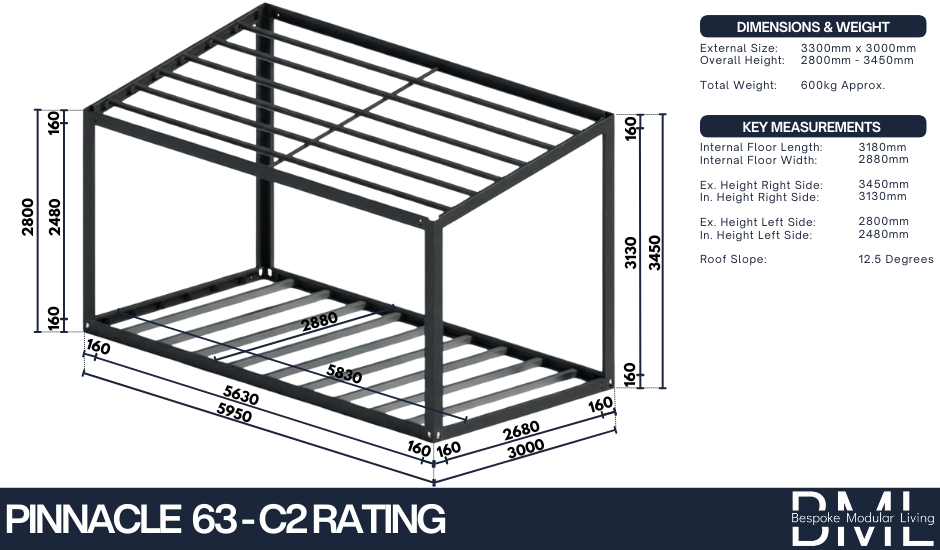

The Pinnacle frame is engineered for N2 wind regions, with beam thicknesses optimised to ensure consistent strength and stability across the structure. The Pinnacle 63 Frame is also available in a c2 rating
Each frame features heavy-duty connection points and reinforced brackets manufactured from powder-coated black steel, providing excellent load distribution and durability. Structural beams and columns deliver added integrity, while roof members and floor joists create a stable, long-lasting foundation.
Supplied as a ready-to-assemble steel frame kit, the Pinnacle Skillion Frame offers a cost-effective alternative to traditional construction. Its modular design allows for easy customisation, trimming to size, or expansion by connecting multiple frames.
Ideal for tiny homes, studios, backyard offices, patios, extensions, and modern outdoor spaces, the Pinnacle Skillion Frame is designed for both permanent and relocatable builds making it a smart, flexible solution for contemporary living.
Brochure:
- BML Skeleton Steel Frames Catalogue
- Materials Guide
- 7 Steps to complete with Timber Framing
- 5 Steps to complete with EPS Panels
Installation Guides:
Set Up Videos:
Skeleton Steel Frame – Building Permit & Engineering Certification
If your project requires a Building Permit, we can assist you in obtaining the necessary engineering certification and footing plans. To provide you with a site-specific Engineering Certificate and Footing Plan, there is a fee of $550. Below are the steps required to proceed:
- Purchase the Frame – Complete the purchase and payment for your steel frame.
- Provide Property Details – Share the property address and specify where on the site the frame/s will be located.
- Architectural Drawings or Concept Plan – Provide drawings with location of windows, doors & internal walls.
- Soil Report (if required) – For an accurate footing plan, a soil report is necessary.
- If you already have a soil report, please send it to us, and we will forward it to our engineer.
- If you need a soil report, we can arrange for our geotechnical technician to visit your site (Victoria only). Additional fees will apply based on your location. For projects outside Victoria, you will need to arrange the soil report independently.
- Engineering Calculations – We will engage our engineer to perform the required calculations.
- Processing Time – Please allow 1-2 weeks for the engineer to complete the documentation.
- Documentation Issued – Once finalized, we will provide you with the following:
- Structural Documentation
- Structural Drawings
- Computations & Certification
Once you receive the documentation from us, the next step is to engage an architect (if you haven’t already) and a building surveyor to proceed with your project.
For any questions or to begin the process, feel free to contact us!
WHAT OUR FRAMES CAN BE USED FOR:
BML Skeleton steel frames have a versatile usage, Its up to your imagination. Some options are:
- Home Office – A quiet, professional workspace.
- Gym – Your personal fitness sanctuary.
- Art Studio – A bright, inspiring creative space.
- Hair Salon – A stylish, functional studio.
- Music Studio – A soundproof haven for musicians.
- Man Cave – The ultimate retreat for relaxation.
- Extra Room – Additional living space for your home.
- Workshop – A practical area for DIY projects.
- Granny Flat – A cozy, independent living space.
GUIDE TO COMPLETE FRAME:
Here is a guide of what building materials can be used with our frames:
- Subfloor: 19mm or 25mm yellow tongue flooring to be screwed to the subfloor.
- Flooring: Vinyl, laminate, hybrid flooring & tiles
- Walls: Opt for easy-to-install 50mm EPS panels that slide together effortlessly, available in various colours. With this option your interior and exterior look is also completed at the same time. You can also explore timber or steel frames for added durability. If going with this option, you can then enhance the exterior with metal cladding or WPC cladding for a modern look. Finish the interior with different cladding options or plasterboard and paint.
- Roofing: Colourbond roof sheeting screwed directly on roofing members for a durable and easy roof solution.
PRICE MATCH GUARANTEE:
At BML, we’re committed to offering you the best value for your money. That’s why we’re proud to introduce our Price Match Guarantee on our skeleton steel frames! If you find a like-for-like product from a competitor at a lower price, let us know! We’ll match their price to ensure you get the same premium quality steel frame at the best possible price. T&C’s Apply
How It Works:
- Find a Competitor’s Product – Locate a skeleton steel frame with the same specifications, materials, and features as ours.
- Contact Us – Share the details with us, including the competitor’s price and product information.
- We’ll Verify – Our team will review the product to ensure it’s a like-for-like match.
- Get Your Discount – Once verified, we’ll match the price and give you the best deal!
